The Difference Between Centerline Butterfly And Eccentric Butterfly Valve

Aug. 25, 2021

Midline (concentric) The structural characteristics of the midline

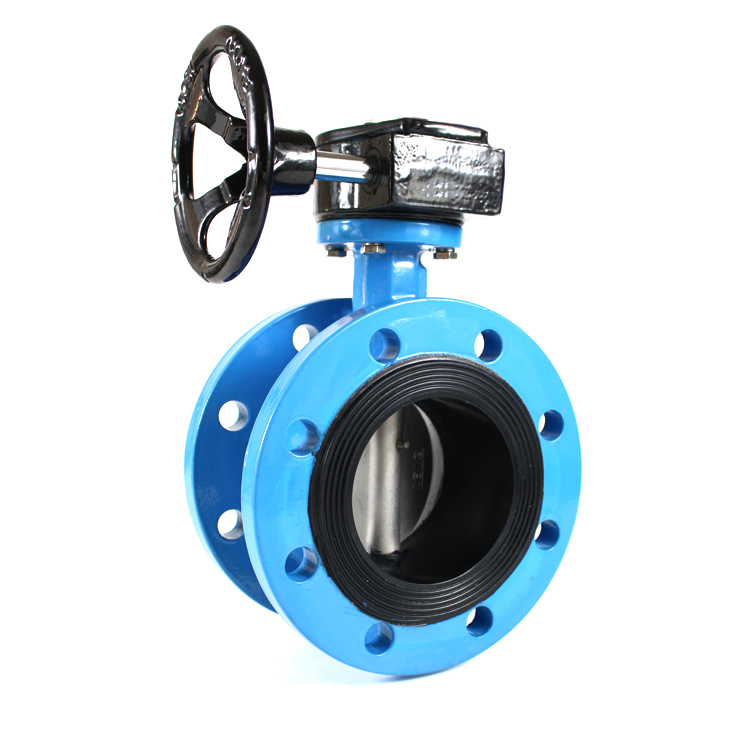

Centerline (concentric) The structural feature of the centerline is that the shaft center of the valve stem, the center of the gate, and the center of the body are in the same position. The structure is simple and the manufacturing is convenient. Common rubber linings belong to this category.

The disadvantage is that the gate and the valve seat are always in a state of squeezing and scratching, large resistance distance, and fast wear. In order to overcome squeezing, scratching, and to ensure the sealing performance, the valve seat is basically made of elastic materials such as rubber, but the sealing material is also limited by temperature in use, which is why people traditionally think that it is not resistant to high temperatures.

Applicable to the pipelines of petroleum, chemical, food, medicine, paper, water and electricity, ships, water supply, drainage, smelting and energy, etc., and can be used in a variety of corrosive and non-corrosive gas, liquid, semi-fluid and solid powder pipelines and containers The above is used for regulating and intercepting equipment.

The Difference Between Centerline Butterfly And Eccentric Butterfly Valve

02

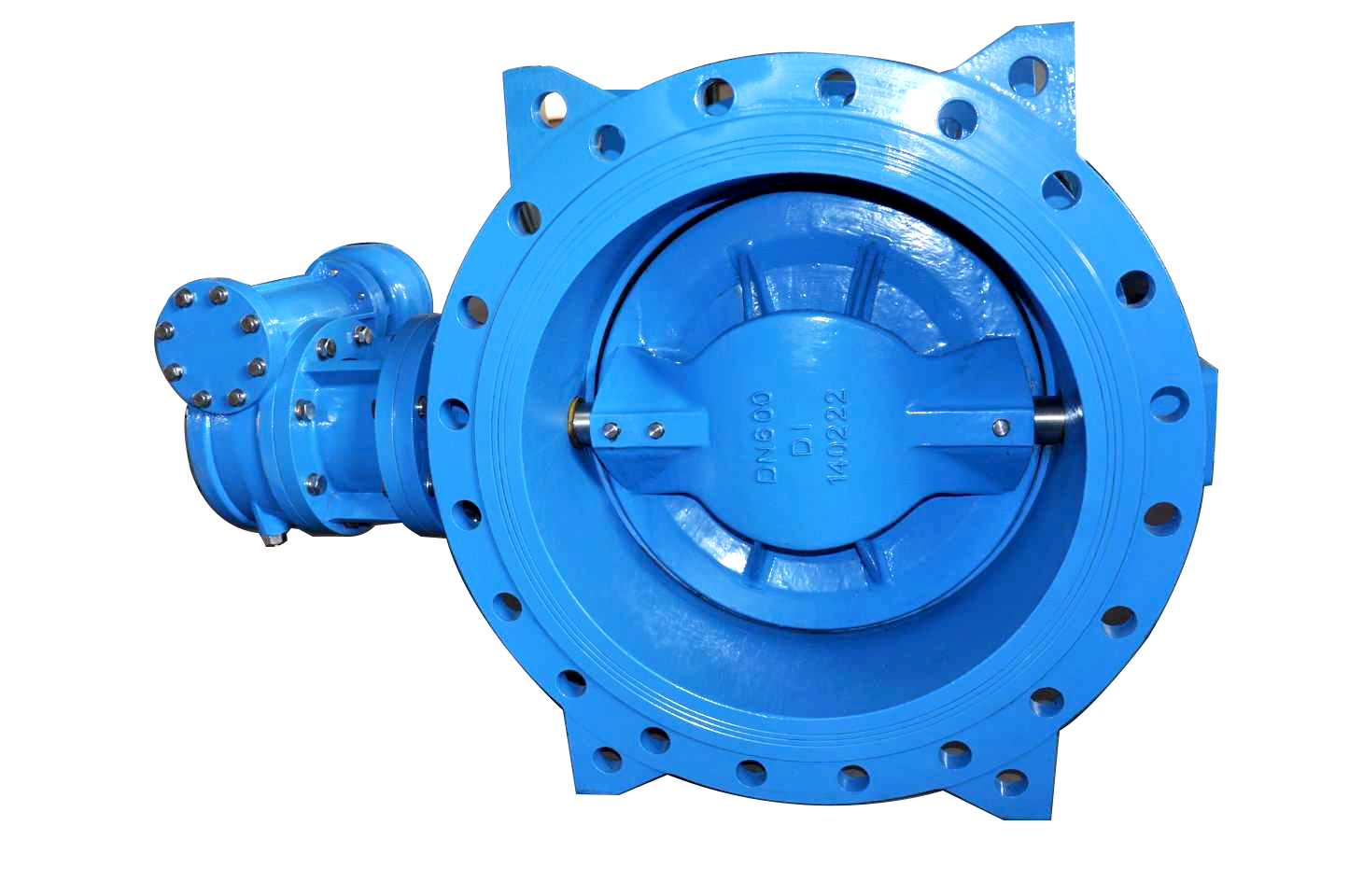

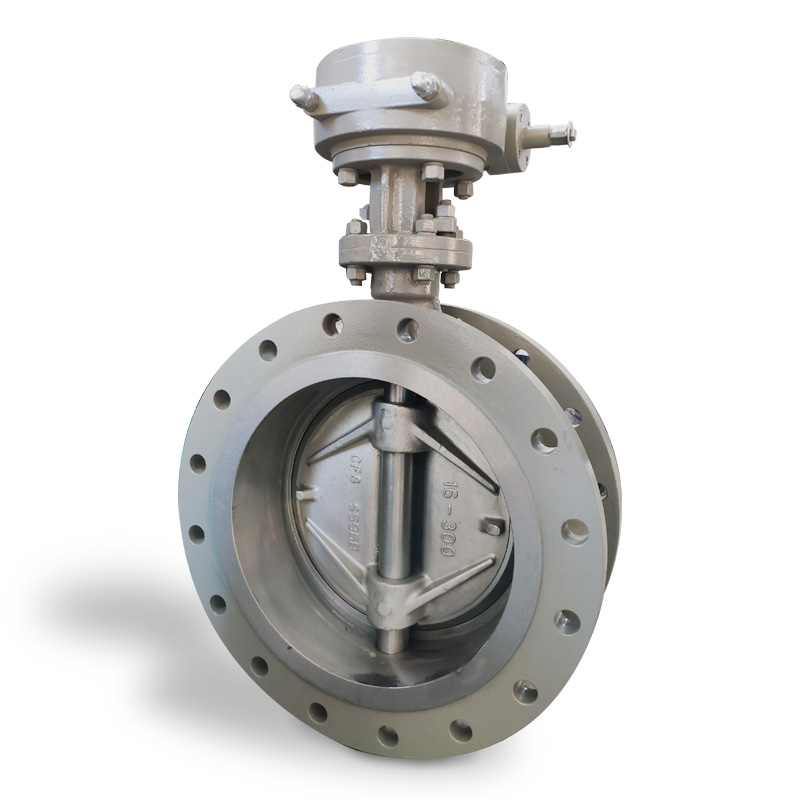

Double eccentricity is further improved on the basis of single eccentricity, and it is also the most widely used. Its structural feature is that the axis of the valve stem deviates from the center of the gate and the center of the body. The double eccentric effect enables the gate to be released from the valve seat immediately after the valve is opened, which greatly eliminates unnecessary excessive squeezing and scratching of the gate and the valve seat, reduces the opening resistance, reduces wear and improves The life of the valve seat is improved. The scrape is greatly reduced, and at the same time, the double eccentric can also use metal seat, which improves the application in the high temperature field (but the sealing performance is not good). Therefore, in the case of high temperature, we recommend the use of double eccentric hard seal. Double eccentric fireproof type.

The rotation center of the butterfly plate and the sealing position of the valve seat form two eccentric distances, which ensure that the butterfly plate is quickly separated from the valve seat during the switch rotation process, so that there is no contact between the butterfly valve and the seal during the working process, which reduces Wear and tear, and more importantly, our G-type valve seat applies the patented technology of Handa (HD). Through a large number of calculations, trial and error, and actual measurement in domestic applications, it has proved that the high-performance butterfly valve has "zero leakage and 100% leakage". The effect of “ten thousand times service life”, our G-type sealing valve seat, from the cross-sectional view, we can see that the contact shape between the butterfly plate of our butterfly valve and the sealing surface of the valve seat is like a simply supported beam structure, when the butterfly plate squeezes towards When the sealing surface of the valve seat, the sealing surface has a flexible deformation position and space, so when the medium pressure changes and the valve seat moves axially, the PTFE valve seat will not be deformed by cold flow. In this way, the butterfly valve will open and close. The sealing surface of the seat will not be squeezed and deformed, and the service life of the valve seat is particularly long.

The Difference Between Centerline Butterfly And Eccentric Butterfly Valve

The Difference Between Centerline Butterfly And Eccentric Butterfly Valve

03

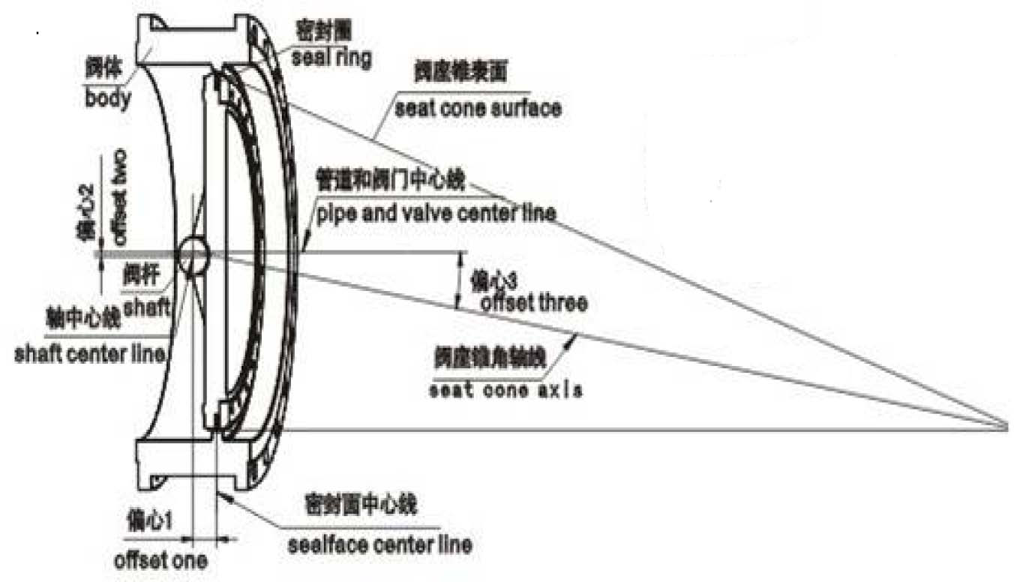

Triple eccentricity To withstand high temperatures, hard seals must be used, but the leakage rate is high; for zero leakage, soft seals must be used, but they are not resistant to high temperatures. In order to overcome the contradiction of double eccentricity, a third eccentricity was carried out. Its structural feature is that while the double eccentric valve stem axis position is eccentric, the conical axis of the gate sealing surface is skewed to the cylinder axis of the body, that is to say, after the third eccentricity, the sealing section of the gate is not Furthermore, it is a true circle, but an ellipse, and the shape of the sealing surface is therefore asymmetric, one side is inclined to the center line of the body, and the other side is parallel to the center line of the body. The highest advantage of this third eccentricity is that it fundamentally changes the sealing structure. It is no longer a positional seal, but a torsion seal, that is, it does not rely on the elastic deformation of the valve seat, but completely relies on the contact surface pressure of the valve seat to achieve the seal. Therefore, the problem of zero leakage of the metal valve seat is solved in one fell swoop, and because the contact surface pressure is proportional to the medium pressure, the high pressure and high temperature resistance is also solved.

The Difference Between Centerline Butterfly And Eccentric Butterfly Valve
