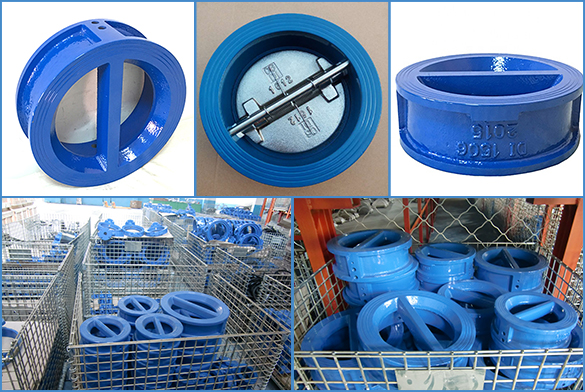

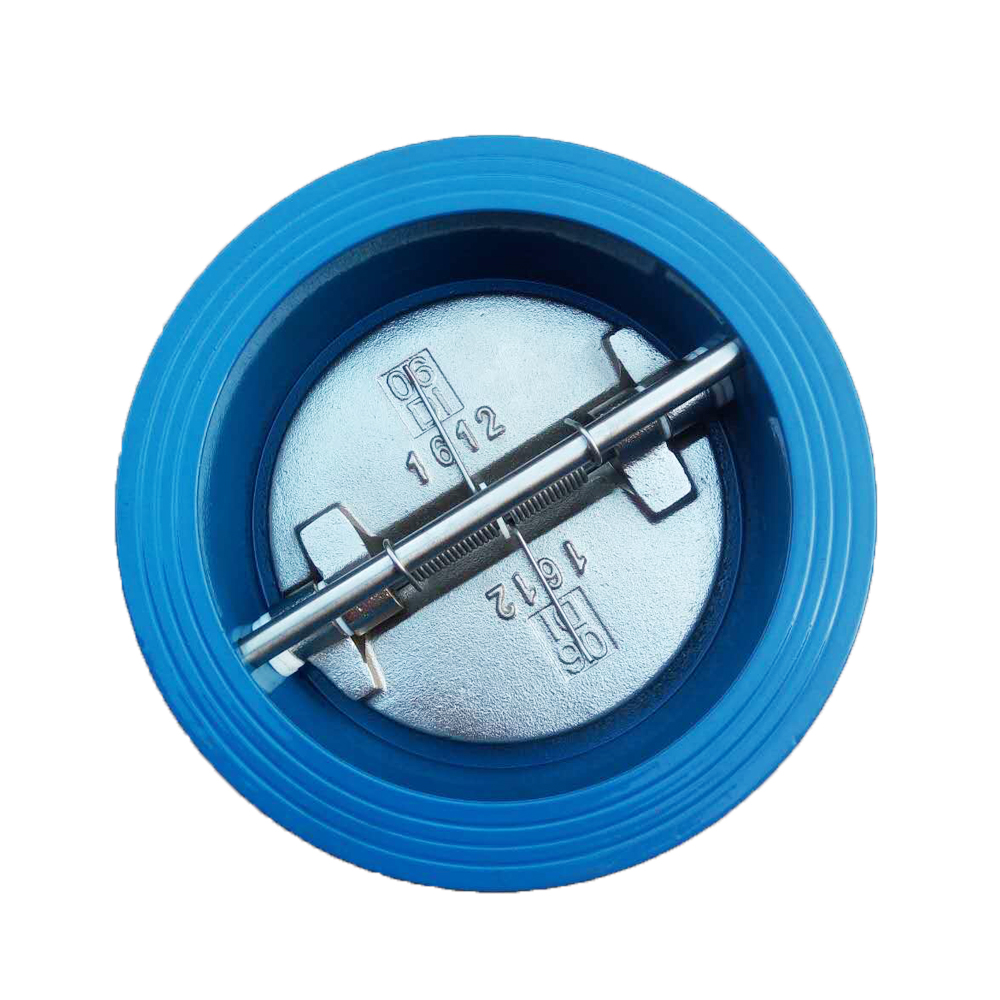

Dual Plate Check Valve

Specifications:

  • Size:DN50-DN500

  • Pressure: PN6/10/16

  • Standard: DIN 2501 PN6/10/16, BS5155

Materials:

  • Body :Ductile Iron

  • Seal : Stainless Steel +EPDM

  • Stem : Stainless Steel 304

Characteristic:

  • Medium: Water and neutral liquid

  • Temperature: 0 to 80℃

Detail / Feature / Application

Detail / Feature / Application

  • Small volume, light weight, compact structure and convenient maintenance.

  • The dual plate can be self closed due to the elastic torque.

  • Fast closing can effectly avoids the back-flowing of the medium and the water hammer effect.

  • Small face to face dimension, simple structure and good reliability.

  • Good sealing effect, zero leakage.

  • It is mainly applied to oil, chemical, food, medicine, textiles, paper making, water supply and drainage, smelting and energy department ,also used as single direction valves
