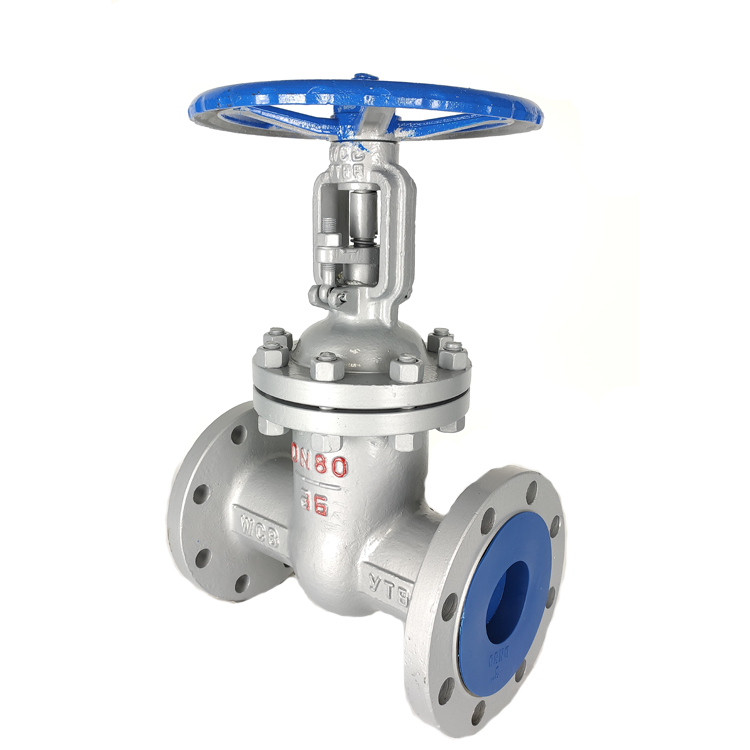

WCB Cast Steel Gate Valve

Specifications:

Gate Valve WCB

  • Size: DN40-DN600

  • Pressure: PN10/PN16

  • Standard:  EN593, DIN 2501 PN6/10/16, DIN3202 F4

Materials:

Gate Valve material

  • Body : WCB

  • Seal : WCB+2Cr13stainless steel

  • Stem : 2Cr13stainless steel

  • Body, cover, plate: WCB, WC1, WC6, WC9, C5 C12, ZGCR5MO, ZG1CR18NI9TI, ZG1CR18NI12MO2TI

  • Valve: 2Cr13, 38CrMoal, 25Cr2MoV, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti

  • Sealing surface: 13Cr-STL wood material nylon

  • Gasket: Enhance flexible graphite, 13Cr / flexible graphite, 08 soft steel, 0Cr18Ni9TI, 0Cr17Ni12Mo2Ti

  • Filler: flexible graphite, enhance flexible graphite

  • Work temperature: ≤570 ° C

Characteristic:

  • Medium: Nitric acid, acetic acid, water, oil, gas and some alkaline liquids.

  • Temperature: -20-425℃

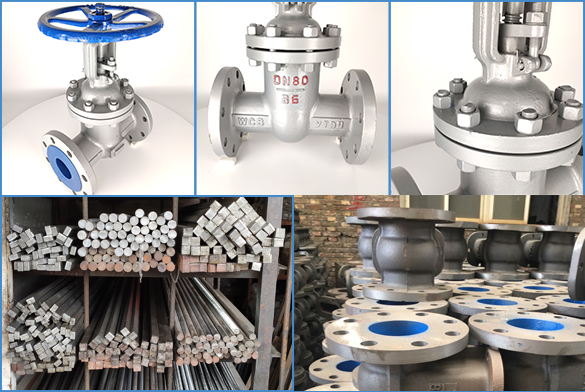

Detail / Feature / Application

Detail / Feature / Application

  • The valve body is made of WCB material with delicate appearance.

  • The internal part numerical control lathe machining, carries on the second processing, causes the appearance to be more beautiful.

  • The seat adopts Cr stainless steel and surfacing 507 molybdenum to increase the wear resistance of the seat.

  • Application: Pipelines to convery oil and storage facilities, Water and wastewater technology, The wellhead device of the oil and gas expoitation, Water engineering.

  • Each product will be carried out appearance, material, air tightness, pressure and shell testingbefore leaving the factory ;unqualified products are resolutely not allowed to leave the factory.


Gate valve WCB Introduction

The cast steel flange hard seal gate valve is mainly used for cutting off in the pipeline. This valve is widely used in petrochemical, thermal power plants and other oil and steam pipelines as opening and closing devices to connect or cut off the medium in the pipeline.


Features of Gate valve WCB

1. Low flow resistance;

2. Less effort when opening and closing. Compared with the globe valve;

3. Large height, long opening and closing time;

4. Water hammer is not easy to produce. The reason is the long closing time;

5. The medium can flow in any direction on both sides, easy to install. The two sides of the gate valve channel are symmetrical;

6. Simple shape, short structure length, good manufacturing technology and wide application range.


Advantages of  Gate valve WCB:

The fluid resistance is small, and the sealing surface is less brushed and corroded by the medium. It saves effort to open and close. The flow direction of the medium is not restricted, does not disturb the flow, and does not reduce the pressure. Simple structure, short structure length, good manufacturing technology, many optional materials for high temperature and high pressure resistance, and wide application range.
