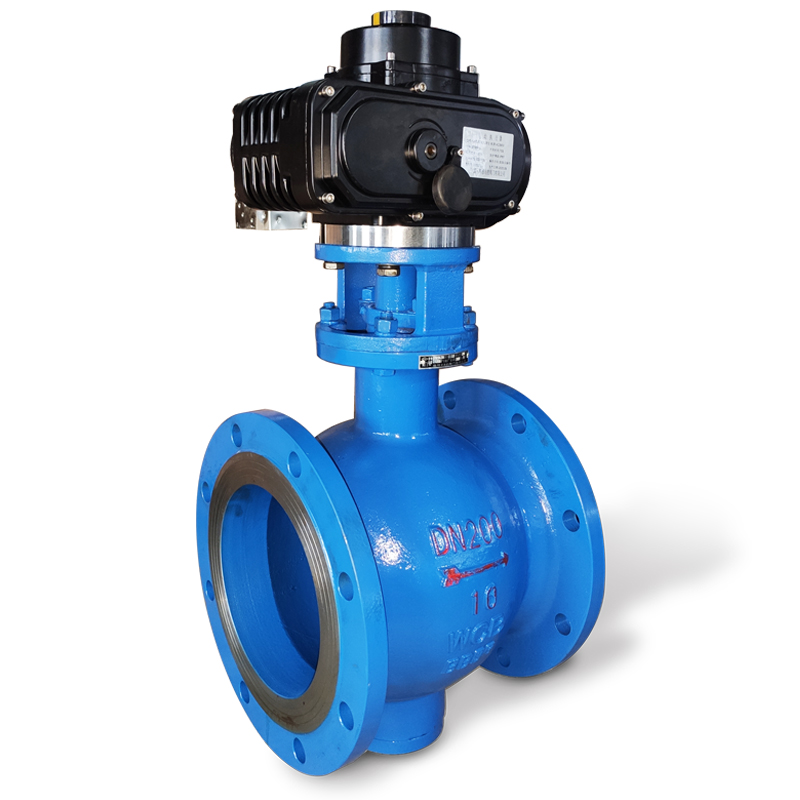

Flange Motorized V Type Ball Valve

Specifications:

  • Size: DN50-DN800

  • Pressure: PN10 PN16 ANSI150 ANSI 300 JIS10K JIS20K

  • Standard:   EN593, DIN 2501 PN6/10/16, DIN3202 F4, EN 1092 , ASTMA216

Materials:

  • Body : WCB CF8 CF8M

  • Seal :  304  316  316L

  • Stem : Stainless Steel 410

Characteristic:

  • Medium: Water, oil,  gas

  • Temperature: -10-180℃

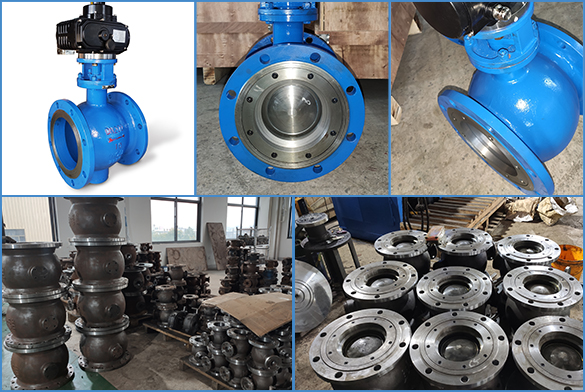

Detail / Feature / Application

Detail / Feature / Application

  • Fluid cutoff and flow.

  • Reliable sealing, good circulation performance, small flow resistance, easy loading and unloading.

  • Adopt direct connection, with simple connection, compact structure and stable operation.

  • Applicable Scenario: Especially suitable for the medium is viscous, containing particles, fiber properties of the occasion, at present, the pneumatic V-type ball valve is widely used in petroleum, chemical industry, metallurgy, light industry, paper, power station, refrigeration and other fields.
