Wafer Butterfly Valve

Specifications:

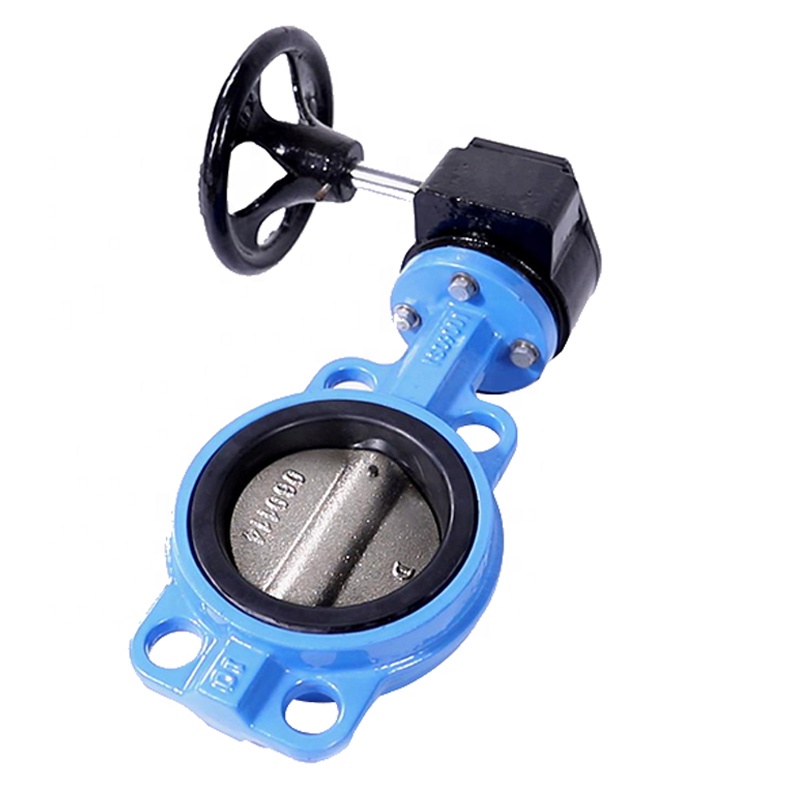

  • Worm Gear Butterfly Valve

  • Size: DN40-DN1200/1.5"-48"

  • Pressure: PN10/PN16

  • Standard:  EN593, DIN 2501 PN6/10/16, DIN3202 K1

Materials:

  • Body : CI/DI/WCB/CF3/ CF3M/CF8/ CF8M

  • Seal : CF8+EPDM

  • Stem : Stainless Steel, Monel K500

Characteristic:

  • Worm gear operated butterfly valve:

  • Valve Design: API 609, MSS SP-67

  • Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

  • Pressure Test: API 598

  • Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

  • Top Flange: ISO5211

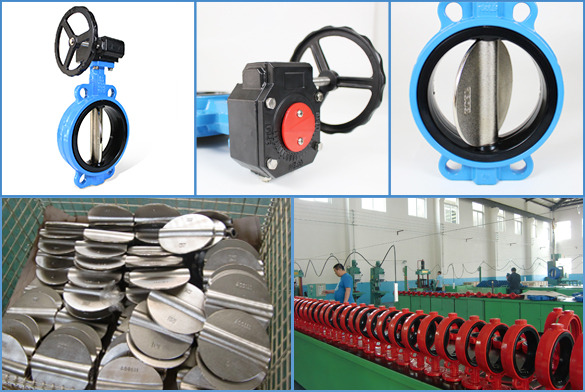

Detail / Feature / Application

Detail / Feature / Application

  • Worm Gear Butterfly Valve Simple and compact construction, quick 90 degrees on-off operation. Minimized operating torque, energy saving.

  • Wide selection of materials, applicable for various medium.

  • The valve body and disc are accurately machined which results in low operating torque and long service life and reliability.

  • Application: Chemical and petrochemical industries, Water and waste water technology, Pneumatic materials handling technology, Shipbuilding, Power generation industry, Food industry.

  • Each product will be carried out appearance, material, air tightness, pressure and shell testingbefore leaving the factory ;unqualified products are resolutely not allowed to leave the factory.



Adoptive Standards:

Valve Design: API 609, MSS SP-67

Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

Pressure Test: API 598

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

Top Flange: ISO5211


Features:

Single Eccentric Disc-Shaft

Anti-Blow Out Stem

Bi-Directional

Fire safe Design

Low Friction Body Seat

Zero Leakage


Standard Test :

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.


Wafer Butterfly Valve


DNINCHL±2ABISO5211DIN2501 PN10DIN2501 PN16ANSI 150LBJIS 10K
mminTOP FLANGE∅ E∅ C1n1-∅ d1∅ Dn- ∅ d∅Dn- ∅ d∅ Dn- ∅ d∅ Dn- ∅ d
401.53313165F0565504-∅ 81104-∅ 181104-∅ 1898.54-∅ 161054-∅ 19
5024316167F0565504-∅ 81254-∅ 181254-∅ 18120.64-∅ 191204-∅ 19
652.54617575F0565504-∅ 81454-∅ 181454-∅ 18139.74-∅ 191404-∅ 19
8034618196F0565504-∅ 81608-∅ 181608-∅ 18152.48-∅ 191508-∅ 19
100452200114F0790704-∅ 101808-∅ 181808-∅ 18190.58-∅ 22.41758-∅ 19
125556213129F0790704-∅ 102108-∅ 182108-∅ 18215.98-∅ 22.42108-∅ 23
150656225144F0790704-∅ 102408-∅ 222408-∅ 22241.38-∅ 22.42408-∅ 23
200860260167F101251024-∅ 1229512-∅ 2229512-∅ 22298.412-∅ 25.429012-∅ 23
2501068292207F101251024-∅ 1235012-∅ 2235512-∅ 26361.912-∅ 25.435512-∅ 25
3001278337237F101251024-∅ 1240012-∅ 2241012-∅ 2643.812-∅ 25.440016-∅ 25
3501478368262F101251024-∅ 1246016-∅ 2247016-∅ 26476.212-∅ 25.444516-∅ 25
40016102400297F141751404-∅ 1851516-∅ 2652516-∅ 30539.516-∅ 2951016-∅ 27
45018114422316F141751404-∅ 1856520-∅ 2658520-∅ 3057816-∅ 3256520-∅ 27
50020127480355F141751404-∅ 1862020-∅ 2665020-∅ 3363520-∅ 3262020-∅ 27
60024154561452F162101654-∅ 2272520-∅ 3077020-∅ 36749.320-∅ 3573024-∅ 33
