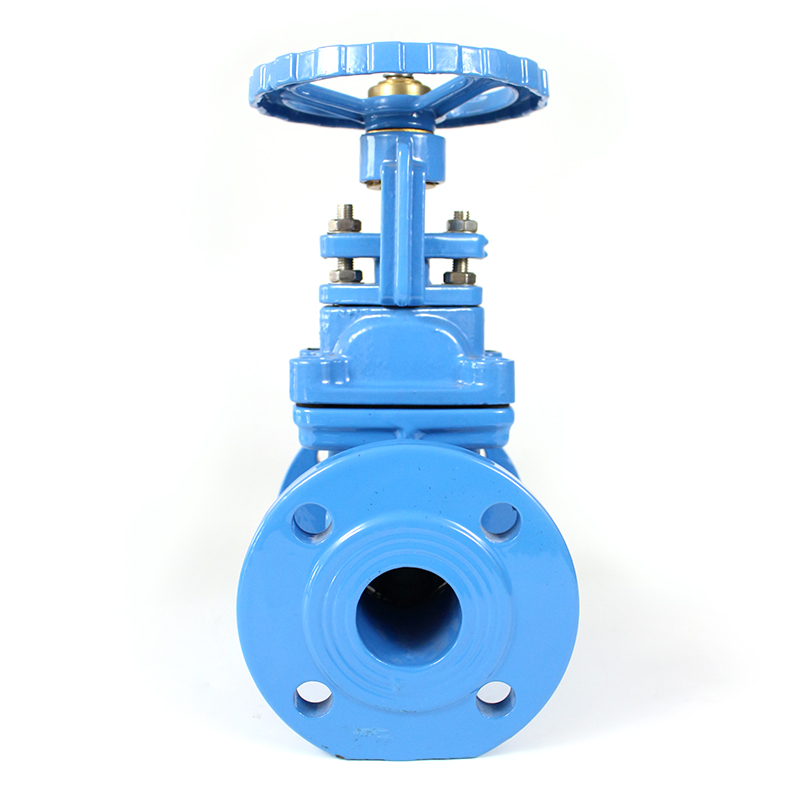

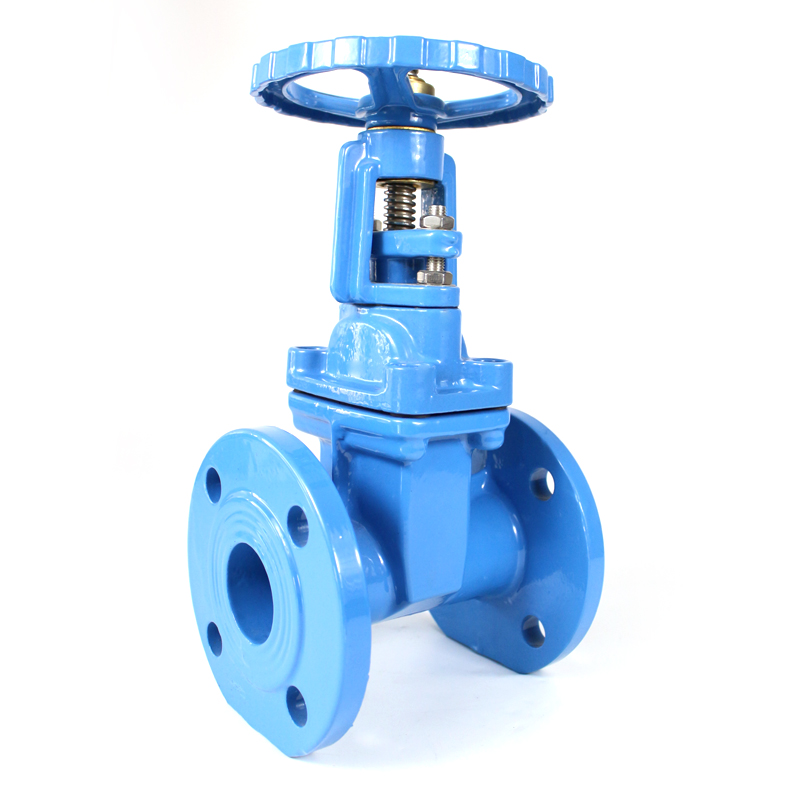

Resilient DI Seat PN10 Gate Valve

DIN3202 os&y Resilient Gate Valve

SEND INQUIRY

Specifications:

Resilient Seat PN10 Gate Valve Specifications

  • Size: 2''-32''/DN50-DN800

  • Pressure: PN1.0-1.6MPa

  • Standard: DIN3202, DIN2501 PN10.PN16/EN 1092

Materials:

Resilient Seat PN10 Gate Valve Materials

  • Body :Ductile Iron

  • Seal : Ductile Iron+EPDM/NBR

  • Stem : 304

Characteristic:

Resilient Seat PN10 Gate Valve Materials

  • Medium: Water, Waste Water, Air, Oil

  • Temperature: NBR≤80°, EPDM≤120°

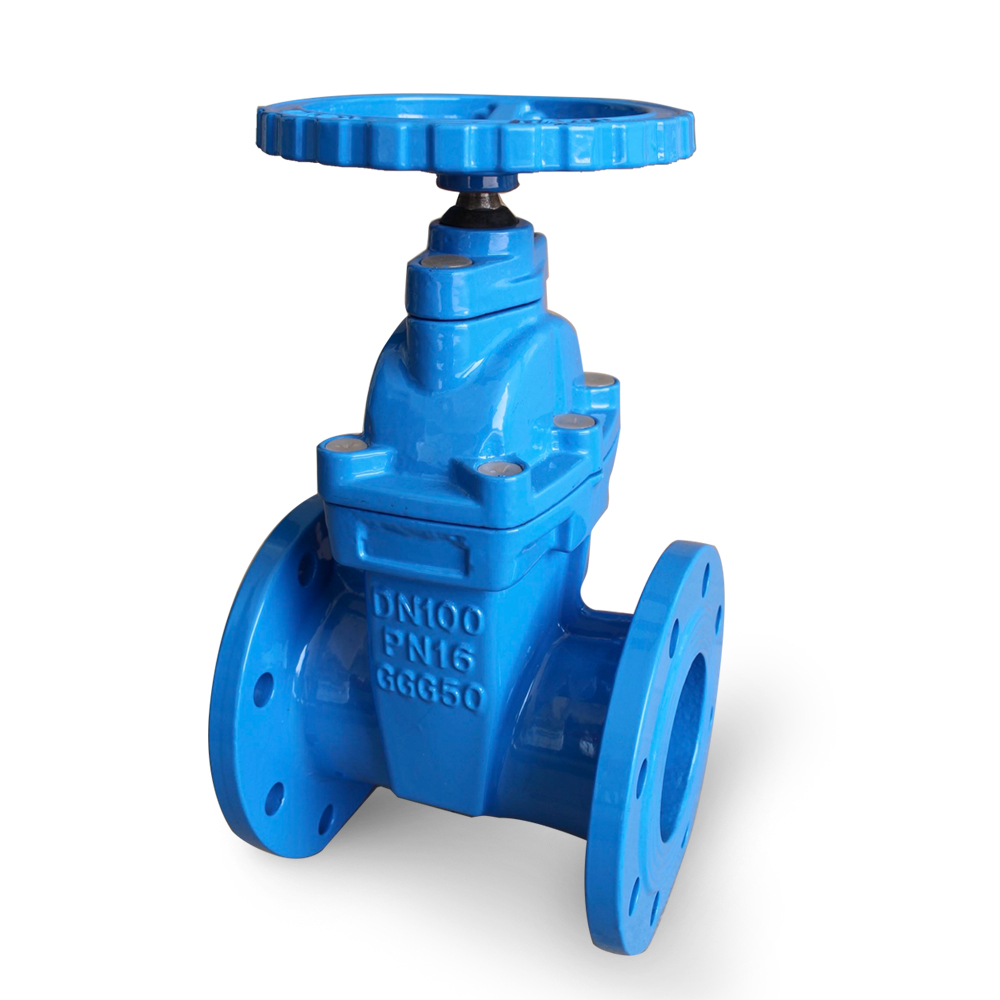

Recommended for you:

Detail / Feature / Application

Detail / Feature / Application

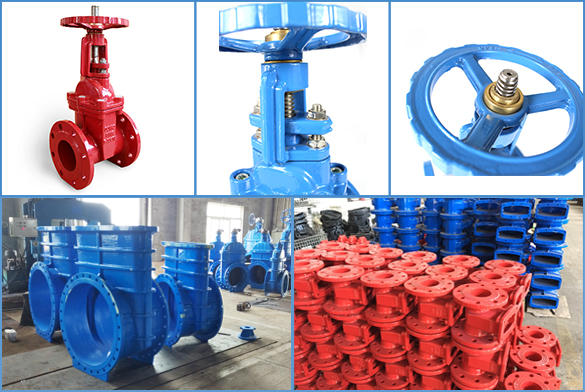

Resilient Seat PN10 Gate Valve Application

  • he valve body is made of precision casting, the precise geometry makes the north of the valve body not need any finishing, so as to ensure the tightness of the valve.
    The valve body adopts streamlined design, so that the medium moves straight in the valve cavity, the flow resistance is smaller and the flow area is larger.

  • Epoxy painted inside is anti-corrosion as well as avoiding the secondday pollution to the fluid.

  • Application: Pipelines to convery oil and storage facilities, Water and wastewater technology, The wellhead device of the oil and gas expoitation, Water engineering.

  • For the installation of valves using in deep well and underground pipe, deep well connecting cap or lengthening rod mechanism can be provided according to customer requirements.
