Rising Stem Globe Valve Vs Swing Check Valve

Oct. 26, 2021

One of the most crucial valves in water and wastewater pumping systems is the check valve. These shutoffs help minimize power usage and also secure the pumping system from pressure rises as well as turn around flow damage. Let's compare Rising Stem Globe Valve and swing check valve.

Rising Stem Globe Valve

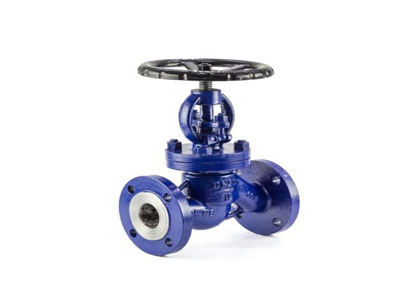

Rising Stem Globe Valve

Rising stem globe valves.

Rising stem globe valve valves are typically used in skyscrapers, industrial as well as nuclear power plant applications, as well as water as well as wastewater applications. They have no exterior moving components and are known for their economic situation as well as dependability. Gradually, these types of valves can have high power expenses since the disc stays in the water flow during procedure. Below are a few of the different types of rising stem globe valve valves.

Quiet Check Shutoffs

Quiet check valves are understood for their peaceful shutoff. The circulation presses the disc and creates it to stream forward. When the pump stops, the compression springtime pushes the disc right into the seat before the circulation reverses, therefore a silent shutoff. This kind of check shutoff is most commonly made use of in high lift tidy water applications.

Spherical Examine Shutoffs

Ball check valves are generally made use of in water as well as wastewater applications. They are very easy to operate and also are portable and affordable. These shutoffs feature a rubber-coated ball that moves in and out of the seat as the circulation progresses and also backward. Since the round has a long way to go when the pump is turned off, these shutoffs are susceptible to knocking in high head applications.

Swing Check Valve

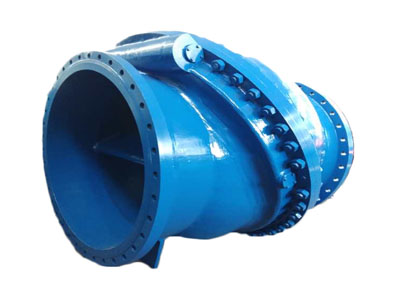

Swing Check Valve

Swing check valve

Swing-flex Check Valves are certainly a few of one of the most typical check valves used in water and wastewater pumping systems. They are easily available and relatively inexpensive. They are likewise automatic, call for no external source of power, and also are led just by the instructions of water circulation. Right here are a few of the different types of swing-flex check valve.

Dual disc type

This type of check valve features a counter-clamp body design and two D-shaped discs that revolve apart as flow gets in the shutoff. It has excellent anti-slip characteristics, yet is not recommended for wastewater treatment. It is additionally at risk to vibration and wear.

Conventional Swing Check Shutoff

This is absolutely one of the most typical type of check valve used in water and wastewater applications. This sort of valve normally has a steel or resistant seat with a 60-90 level swing. Nonetheless, this kind of shutoff tends to bang as a result of the long stroke, rubbing in the packing, and inertia of the disc. Often an air pillow is used to aid reduce the slamming. Although some take into consideration levers as well as springs to be better installations since they permit the shutoff to close quicker.

Contact us today for more information and help. Tianjin KXC group manufacture valves, valve parts & related products for water works and water treatment projects.
