What is the Application of Butterfly Valve?

May. 26, 2021

As a Wafer Butterfly Valve Manufacturer, share with you.

A butterfly valve is suitable for flow regulation. Due to the relatively large pressure loss of the butterfly valve in the pipeline, the robustness of the butterfly plate to withstand the pressure of the pipeline medium when it is closed should also be considered. In addition, it is necessary to consider the limitation of the working temperature of the elastic valve seat material at high temperatures. The structure length and overall height of the butterfly valve are small, the opening and closing speed is fast, and it has good fluid control characteristics. The structural principle of the butterfly valve is most suitable for the manufacture of large diameter valves. When a butterfly valve is needed to control the flow, the most important thing is to correctly select the size and type of the butterfly valve so that it can work correctly and effectively.

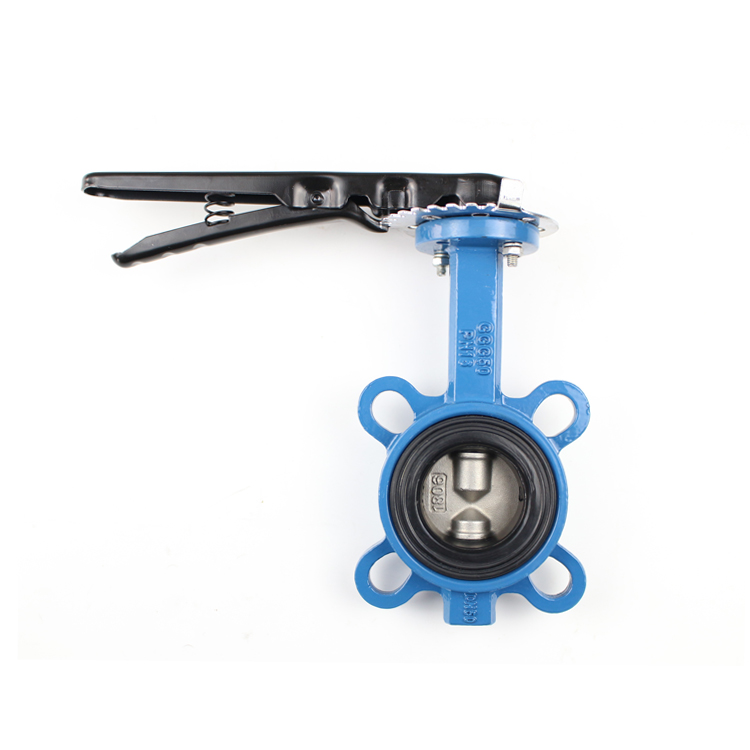

Double Shaft Butterfly Valve

Double Shaft Butterfly Valve

Generally, in throttling, regulating control and mud medium, the structure length is required to be short and the opening and closing speed is fast (1/4 revolution). For low pressure cut-off (small pressure difference), it is recommended to use a butterfly valve.

When performing two-position adjustment, narrow passage, low noise, cavitation and vaporization, a small amount of leakage into the atmosphere and grinding media, butterfly valves can be used.

When the butterfly valve is used under special conditions such as throttling adjustment, strict sealing requirements, severe wear, and low temperature (low temperature), the triple-eccentric or double-eccentric butterfly valve needs a specially designed metal sealing belt adjustment device.

Butterfly valve is suitable for fresh water, sewage, sea water, salt water, steam, natural gas, food, medicine, petroleum and all kinds of needs to be completely sealed, zero gas leakage test, and can also be widely used in petroleum, petrochemical, chemical, metallurgy, electric power and other fields. Gate valves and globe valves are good alternatives.

Our company also has Double Shaft Butterfly Valve on sale, welcome to contact us.
