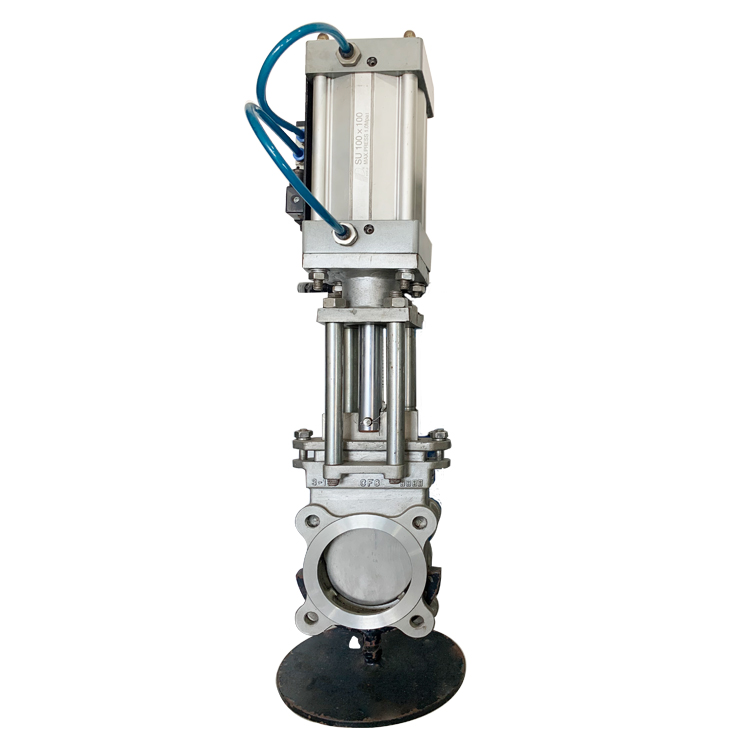

Pneumatic Knife Gate Valve

Specifications:

  • Size: DN50-DN600

  • Pressure: PN10/PN16

  • Standard:  EN593, DIN 2501 PN6/10/16, DIN3202 F4

Materials:

  • Body : SS

  • Seal : SS304/SS316+PTEF

  • Stem : Stainless Steel 410

Characteristic:

  • Medium: Water, Oil, Gas

  • Temperature: 0-150℃

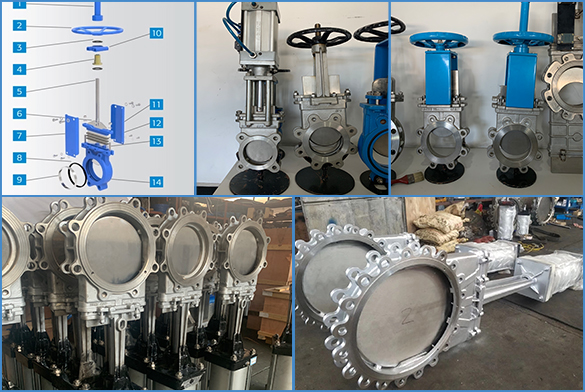

Detail / Feature / Application

Detail / Feature / Application

  • Knife gate valve opening and closing part is the valve plate, the plate movement direction is perpendicular to the direction of the fluid. Knife gate valve can only be fully open and fully closed, can’t be used for adjusted and the throttle.

  • The valve adopts bidirectional sealing design, and the installation direction and medium flow direction are not limited.

  • The inside and outside of the valve bodyadopt powder epoxy resin electrostatic coating, which can effectively prevent corrosion and rust caused by contact between valve body and medium, and can be used in sewage system.

  • For the installation of valves using in deep well and underground pipe, deep well connecting cap or lengthening rod mechanism can be provided according to customer requirements.
