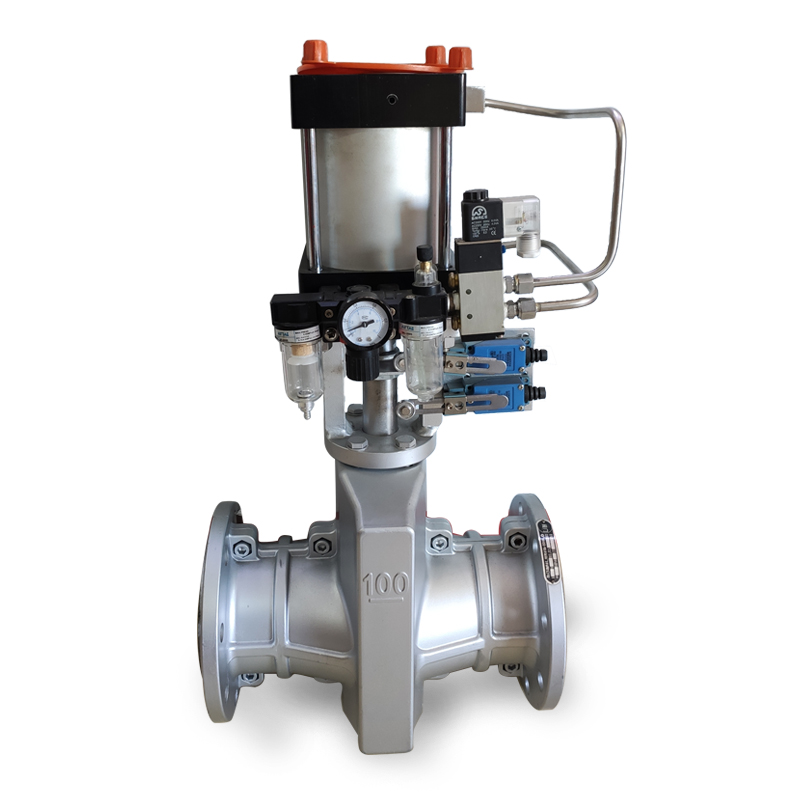

Pneumatic Actuators Pinch Valve

Specifications:

  • Size: DN25-DN600

  • Pressure: PN10/PN16

  • Standard: DIN2501 PN10/PN16, DIN2532,DIN2533, BS5155, EN1092, API609, JIS

Materials:

  • Body : WCB, SS304

  • Seal : NBR, EPDM, VITON, PTFE+Ductile Iron, WCB, CF8,CF8M

  • Stem : SS416, SS304, SS316

Characteristic:

  • Medium: Water, Oil, Gas (Various kinds of materials, applicable to different medium)

  • Temperature: -20-300℃ (Different materials are suitable for different temperatures)

Detail / Feature / Application

Detail / Feature / Application

  • Full diameter: when tube pinch valve is fully opened, the flow channel is cylinder rubber pipeline, the diameter is equal to valve nominal diamter, without turn and crack. No eddy, no vibration, no noise and no cavitation. Suitable for high velocity fluid valve

  • Scaling preventing: Valve flow channel is made of rubber, with smooth inside wall, not easy to scaling. Everytime when closing and opening, scaling will be crushed away valve

  • Closing tightly: Rubber flow channel has the advantage of fine wraping cability, valve can been closed tightly even if there is sundries on sealing surface valve

  • Anti-abrasive and corrosion resistance valve

  • No maintance: Rubber channel is the only parts meets fluid, no packing material needed, medium will not corrode other parts of valve. Service life is long, and no need maintance.
