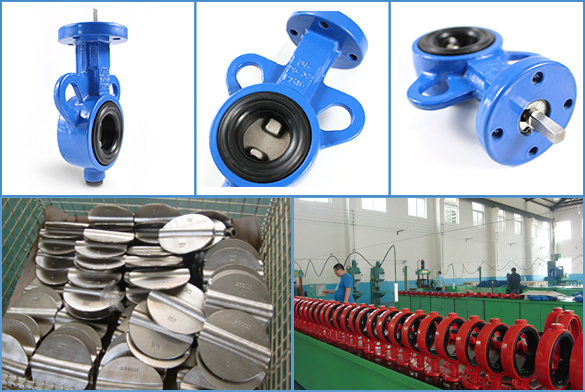

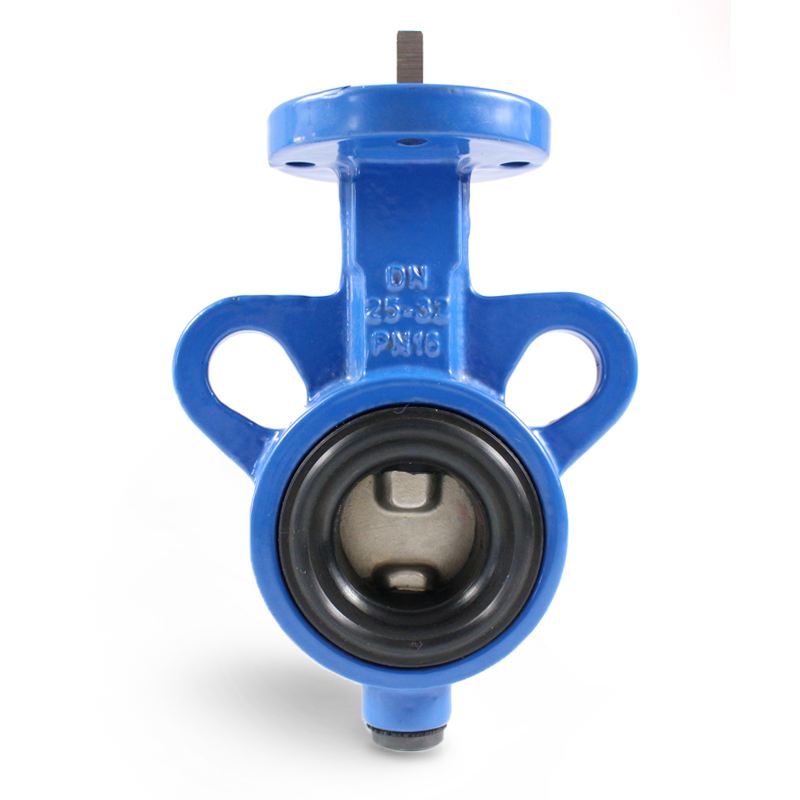

DN25-32/1" Wafer Butterfly Valve


Size: DN25-DN32 / 1"

Pressure: PN16

Standard:  EN593, DIN 2501 PN6/10/16, DIN3202 K1


  • Body : Ductile Iron

  • Seal : CF8+EPDM

  • Stem : Stainless Steel 410


  • Medium: Water, Oil, Gas

  • Temperature: 0-80℃

Detail / Feature / Application

Detail / Feature / Application

  • Simple and compact construction, quick 90 degrees on-off operation. Minimized operating torque, energy saving.

  • Wide selection of materials, applicable for various medium.

  • The valve body and disc are accurately machined which results in low operating torque and long service life and reliability.

  • Application: Chemical and petrochemical industries, Water and waste water technology, Pneumatic materials handling technology, Shipbuilding, Power generation industry, Food industry.

  • Each product will be carried out appearance, material, air tightness, pressure and shell testingbefore leaving the factory ;unqualified products are resolutely not allowed to leave the factory.
