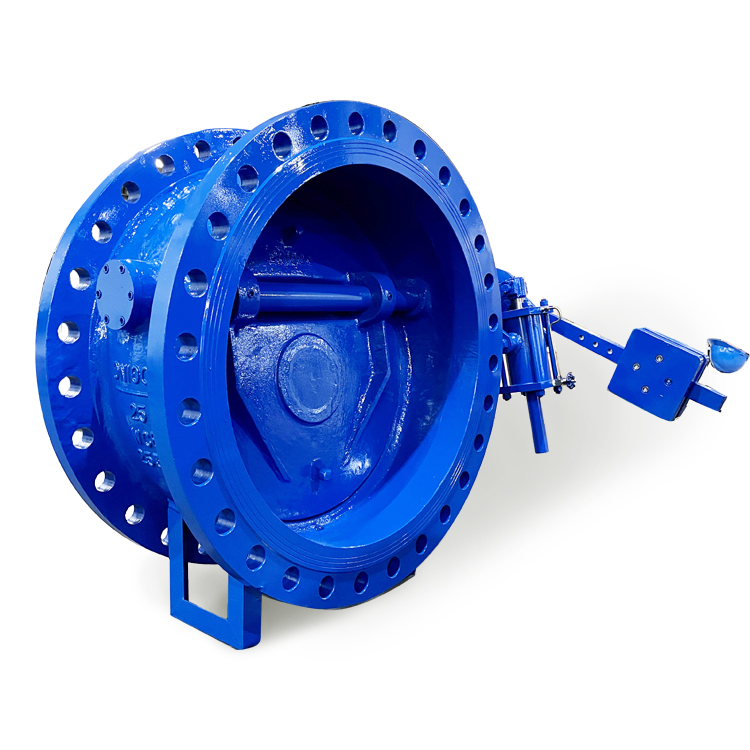

Anti Water Hammer Check Valve

Specifications:

  • Size:  2 in–80 in (50 –2000mm)

  • Pressure: PN10/16/25 (10/16/25Mpa)

  • Standard:  EN593, DIN 2501 PN6/10/16, DIN3202 K1

Materials:

  • Body :WCB (ASTM A216 / Cast steel)

  • Seal : WCB (ASTM A216 / Cast steel)

  • Stem : Stainless Steel 410

Characteristic:

  • Medium: Water and neutral liquid

  • Temperature: -20 to 120℃

Detail / Feature / Application

Detail / Feature / Application

  • The WCB check valve is installed on the outlet pipes of the pressurized water pumps of industrial circulating water supply and drainage, urban water supply and drainage, high-rise buildings, sewage and hotels.

  • A new type of butterfly check valve that prevents medium backflow and eliminates destructive water hammer.

  • In the design, the requirements of the use environment are fully considered to achieve no vibration, no noise, stable operation and long service life.

  • Ensure that the hotel and residential environment are quiet and have energy-saving effects.

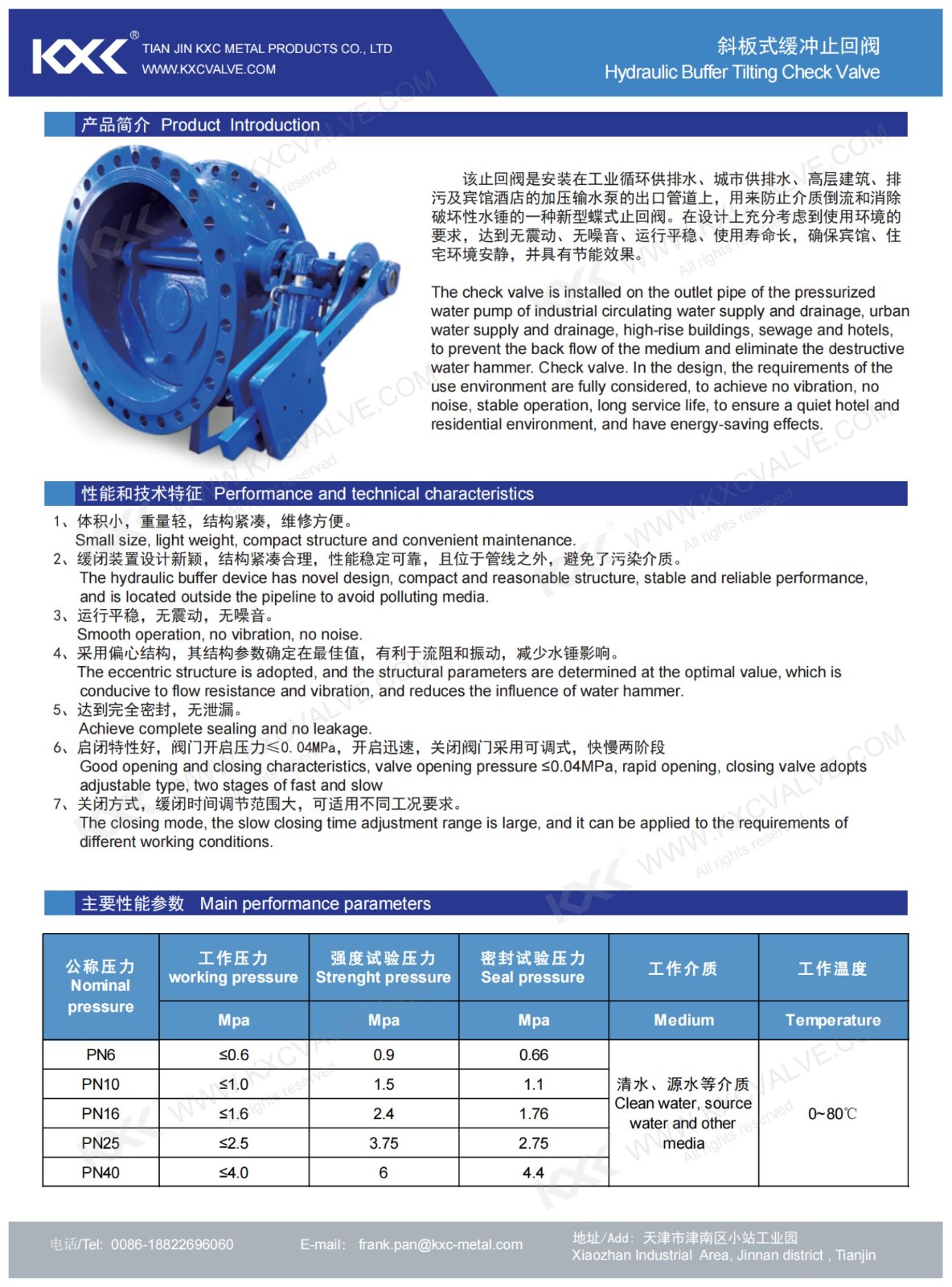

The check valve is installed on the outlet pipe of the pressurized  water pump of industrial circulating water supply and drainage, urban  water supply and drainage, high-rise buildings, sewage and hotels,  to prevent the back flow of the medium and eliminate the destructive  water hammer. Check valve. In the design, the requirements of the  use environment are fully considered, to achieve no vibration, no  noise, stable operation, long service life, to ensure a quiet hotel and  residential environment, and have energy-saving effects.


Anti Water Hammer Check Valve

Anti Water Hammer Check Valve

Anti Water Hammer Check Valve
