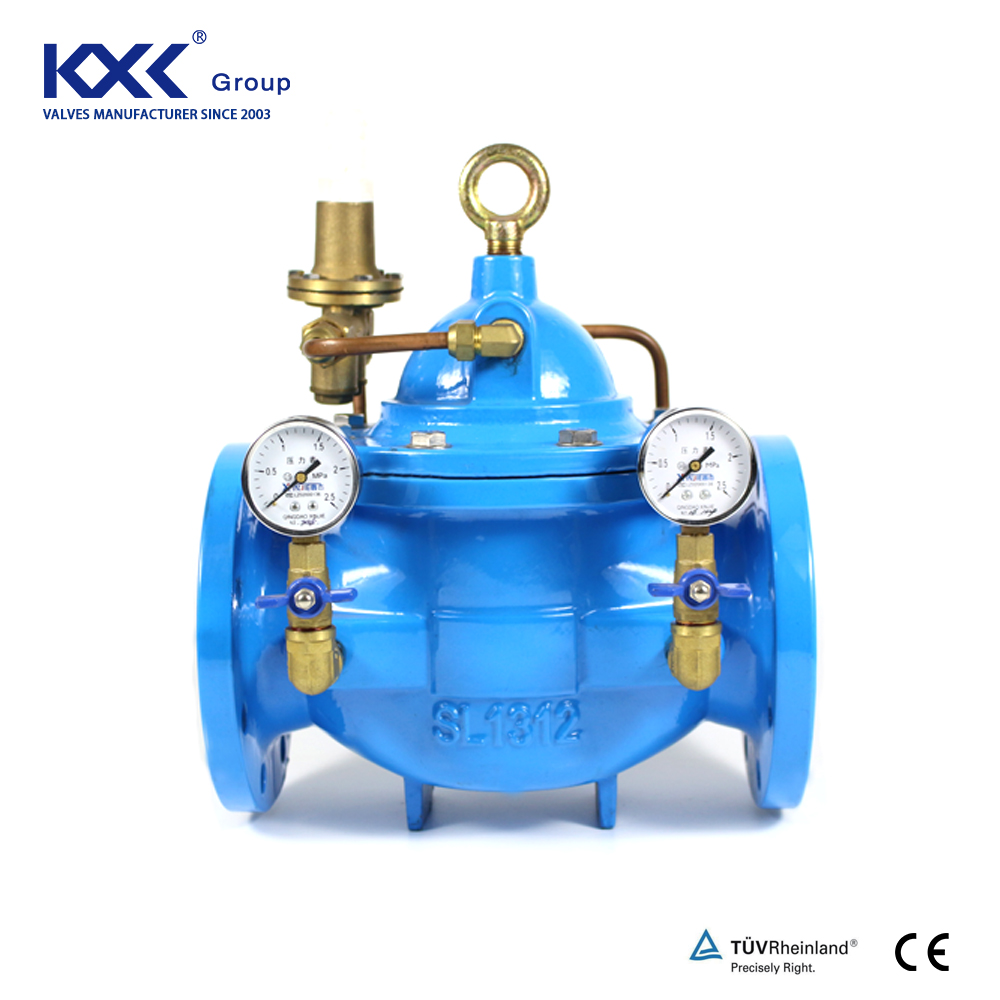

200X pressure reducing valve

Specifications:

  • Size:DN50-DN300

  • Pressure: PN10/16

    Standard: DIN 2501 PN6/10/16, BS5155

Materials:

  • Body : QT450 Nodular cast iron

  • Seal :  Ductile Iron+Copper alloy

  • Stem : Stainless Steel

Characteristic:

  • Medium: Water, Waste Water

  • Temperature: 0 to 80℃

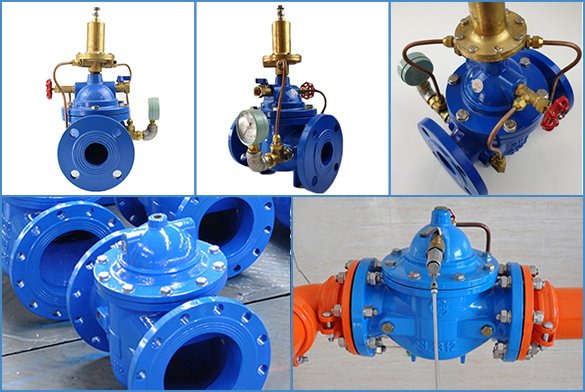

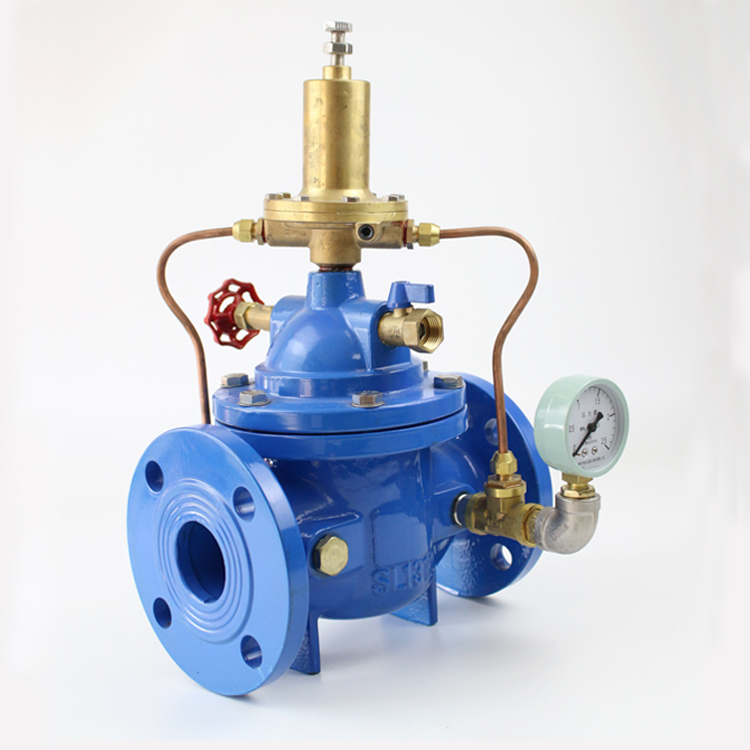

K601 KXC 200X pressure reducing valve

Detail / Feature / Application

Detail / Feature / Application

  • Type: Pilot control valve,

  • Working pressure: 16/25 bar.

  • Meet standards BS EN 1074-5,ISO 5208, BS EN 12266.1,BS EN 558-1. Flanged to JIS 10/16K, BS4504 PN16/25,ANSI#150/300 Throttles to reduce high upstream pressure to constant lower downstream pressure.

  • Reducing set-point is adjustable.  Horizontal installation.

  • Will reduce the higher upstream pressure and keep the downstream pressure as the pilot setting(Adjustable).

  • Regardless of variation of upstream pressure vs downstream flow.
