Home / Products / Control Valve / K502 Stainless Steel Float Valve

K502 Stainless Steel Float Valve

SEND INQUIRY

Specifications:

Size: DN50-DN600
Pressure: PN10/16
Standard: DIN 2501 PN6/10/16, BS5155

Materials:

Body : Stainless steel/CF8/SS304
Seal : Stainless steel
Stem : Stainless Steel

Characteristic:

Medium: Water, Waste Water
Temperature: 0 to 80℃

Recommended for you:

Detail / Feature / Application

The structural design is novel and rational, skillfully integrating hydraulic principles and control theory to ensure precise and efficient operation.
It operates smoothly and reliably with a high flow capacity, meeting the demands of high-flow working conditions.
The valve disc opens quickly and closes slowly, eliminating water hammer impact (with adjustable closing time).
It offers excellent sealing performance, outstanding check effect, and a long service life.
Installation and maintenance are simple, facilitating easy operation and ongoing maintenance.

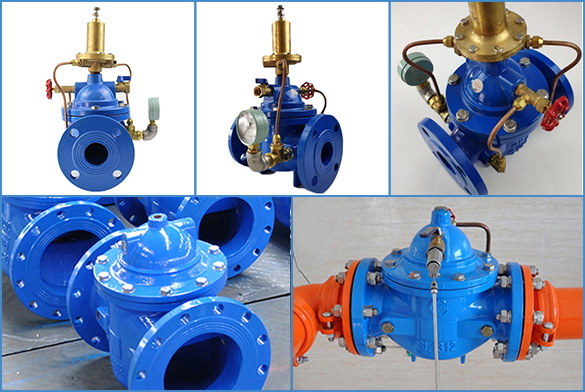

This valve consists of a main valve and an externally mounted pilot valve. It utilizes a float that moves with changes in liquid level to actuate the pilot valve, which in turn drives the main valve to open or close, thereby maintaining the water level in reservoirs (tanks) and water towers within a set range and effectively preventing overflow or low water level incidents. This product is widely suitable for automatic water supply control in various types of reservoirs (tanks) and water towers in industrial, mining, and civil buildings, and can also be used in constant-pressure boiler circulation systems. The main valve features quick-opening and slow-closing actions, which effectively prevent water hammer, and ensures tight sealing with no risk of leakage.
