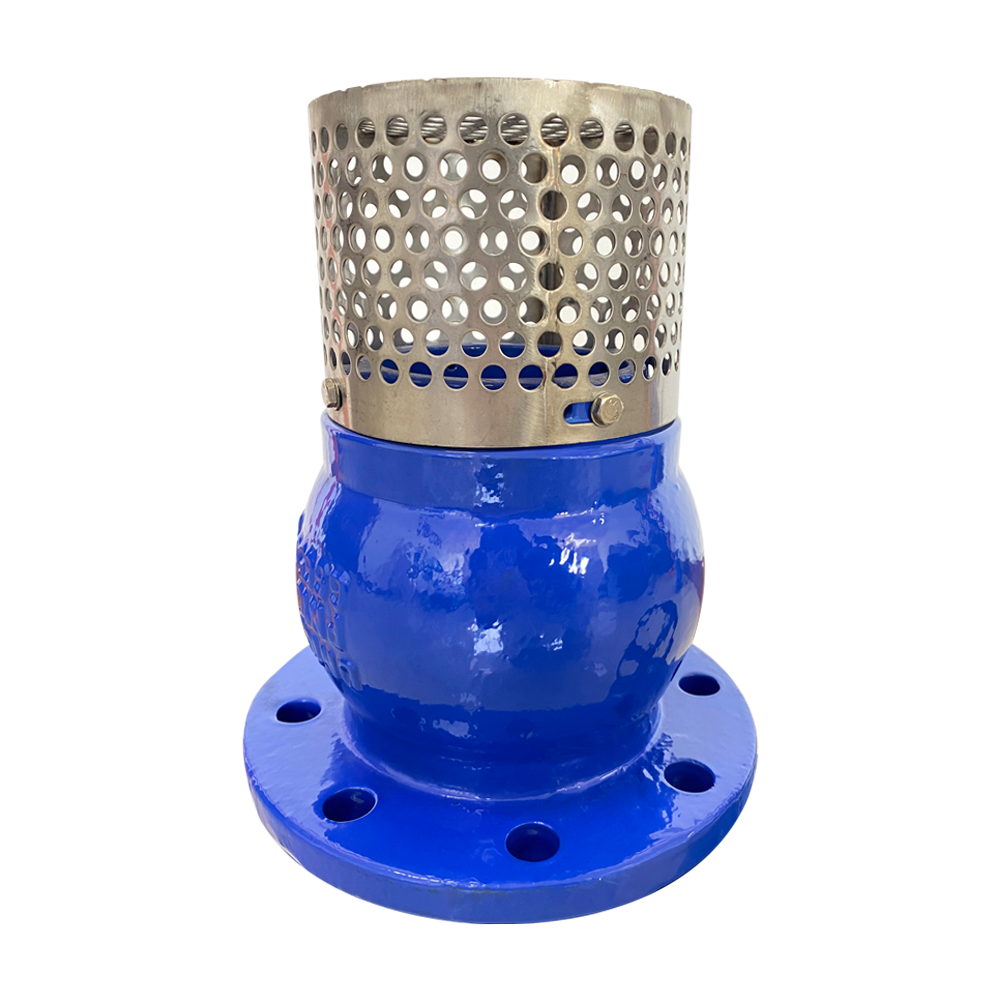

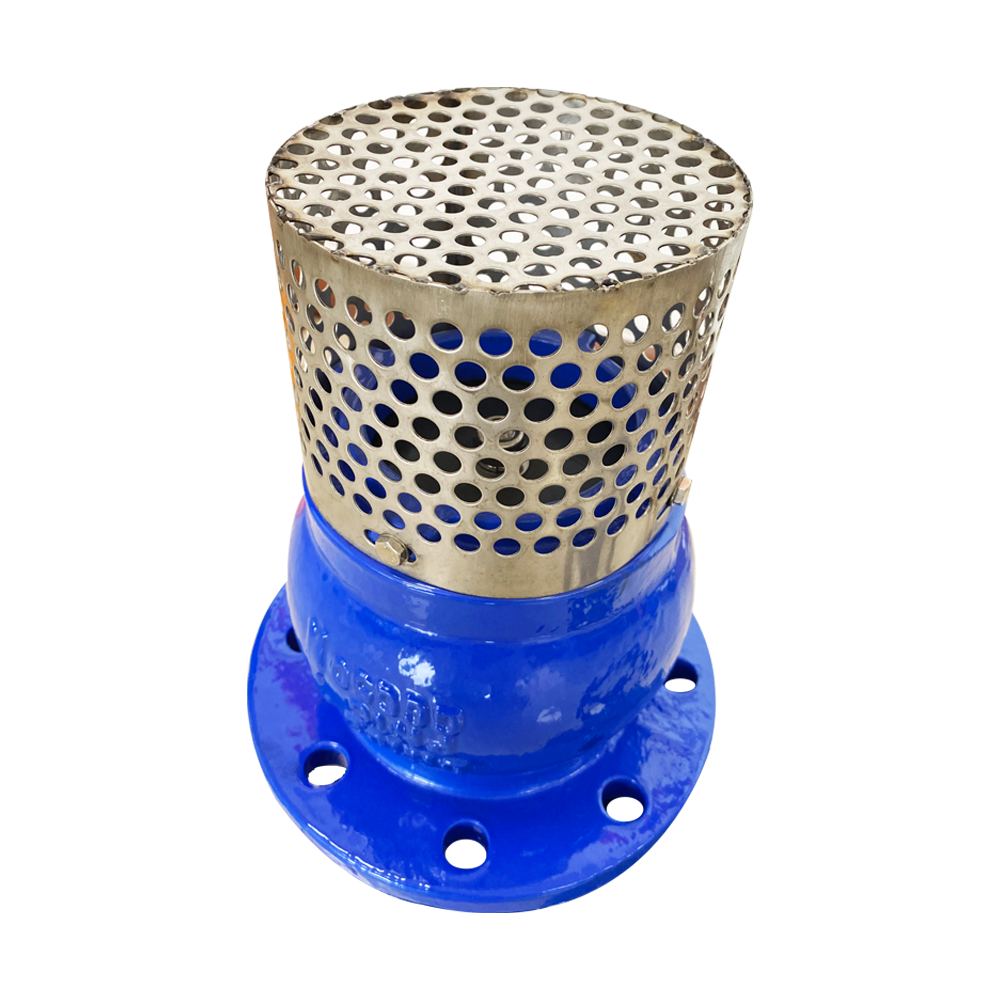

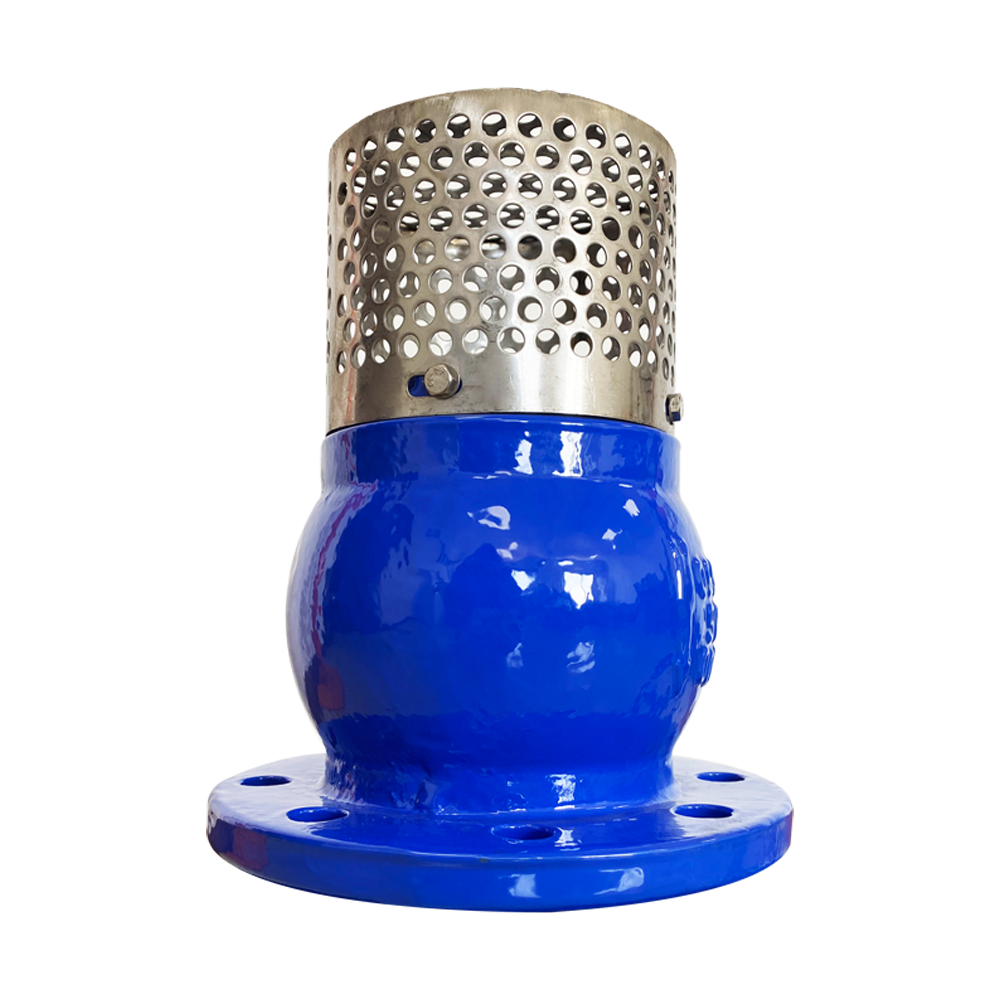

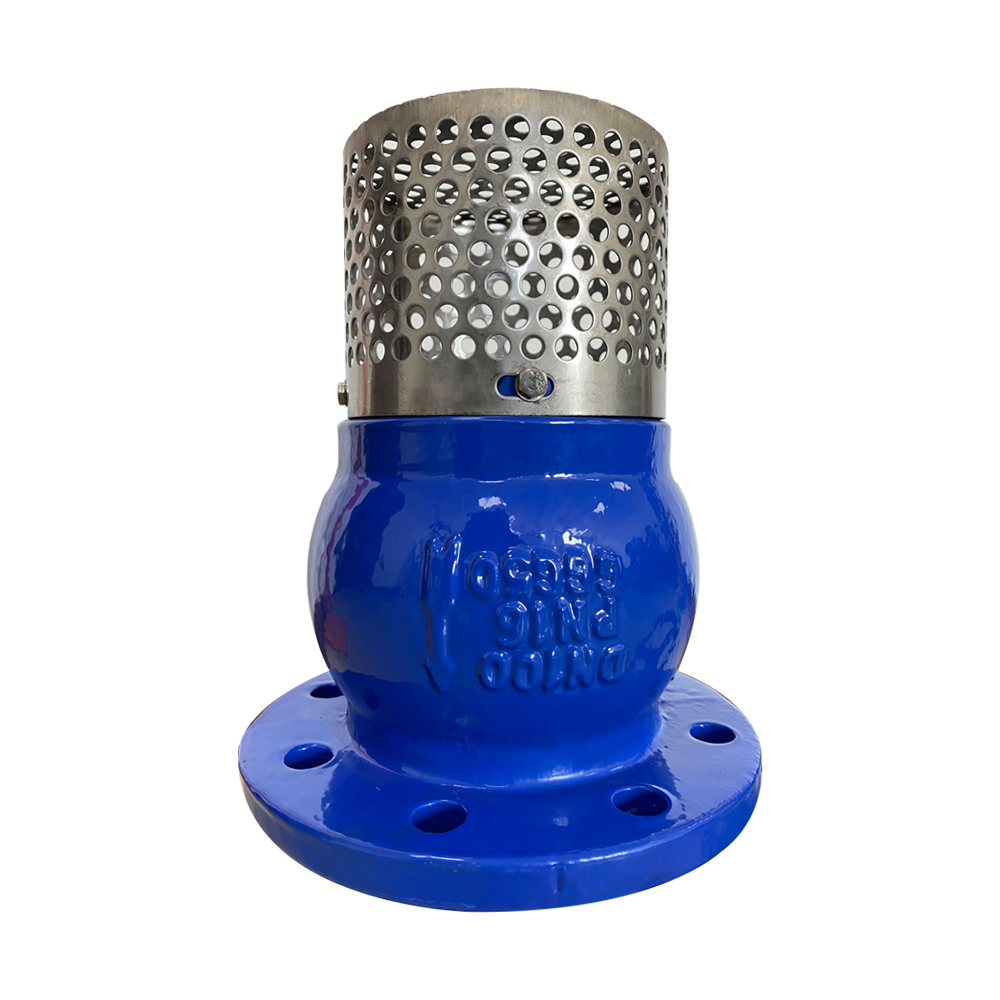

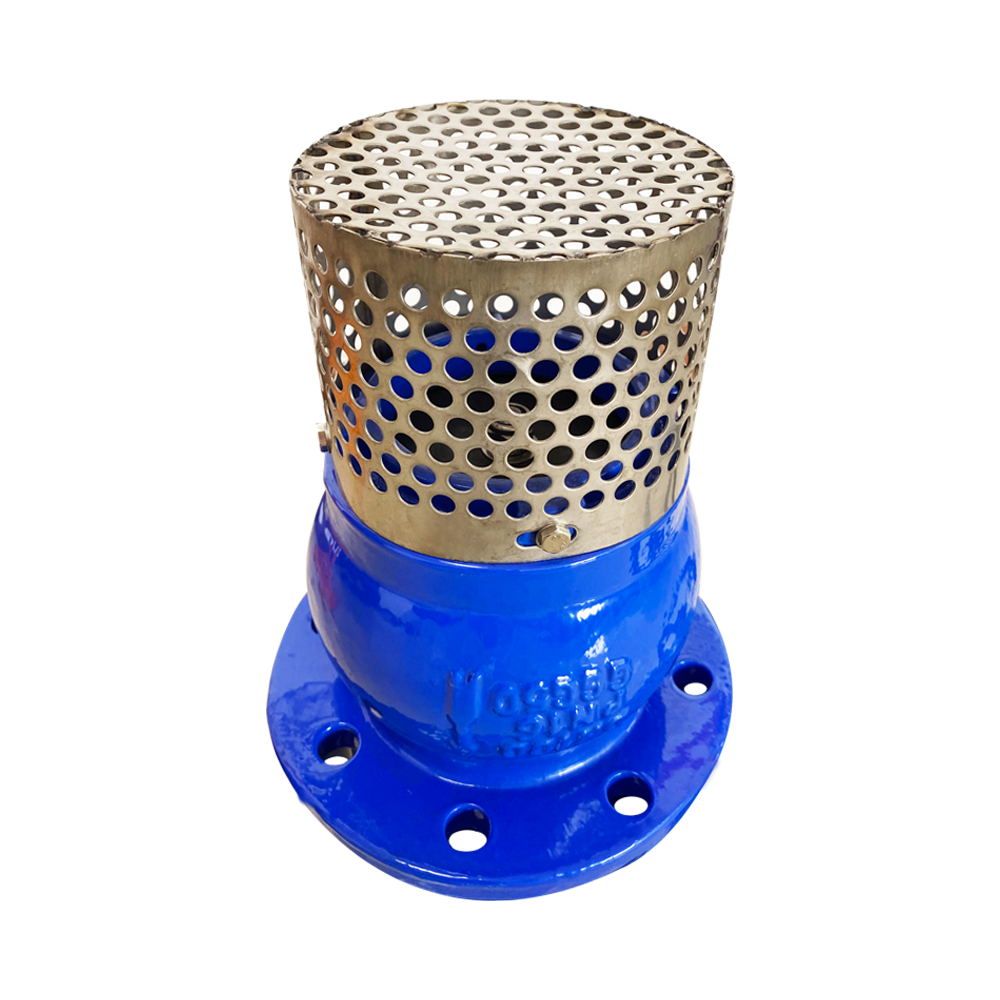

Blue Flanged Foot Valve

Specifications:

  • Product name: foot valve

  • Standard:DIN STANDARD

  • Process:casting

  • Body material:nodular cast iron

  • Connection:Flanged type

  • DN:DN50~DN300

  • Drive mode:Automatic

  • Applicable medium:Water Source Water Sewage Air Oil

  • Applicable temperature:0°C~80°C nominum

  • Pressure:1.0MPa~1.6MPa

Materials:

  •  Body GGG50 (Ductile Iron)

  • Base GGG50 (Ductile Iron)

  • Spring SS304 (Stainless Steel)

  • Stem 2Cr13 (Stainless Steel)

  • Disc GGG50+EPDM (ductile iron + rubber)

  • Bolt SS304 (Stainless Steel)

  • Strainer SS304 (Stainless Steel)


Characteristic:

Lift-type foot valve non-self-filling centrifugal pump must be filled with water before starting. The foot valve is mainly used in the pumping occasion of non-self-filling centrifugal pumps, which is installed at the bottom of the suction line and completely submerged in water. The foot valve has a check function, the water in the suction pipeline can only flow to the direction of the pump inlet, can not return to the suction pool, the first pump needs to be filled when it starts, and there is no need to fill water in the future (in fact, due to the sealing of the bottom valve, processing quality problems, a certain amount of water needs to be replenished when starting again).

Check valves usually cannot withstand high pressure, but the water return on the outlet side after the pump is shut down will generate a lot of pressure, and in order to prevent the foot valve from being damaged, some foot valves are equipped with pressure relief pipes.

Generally speaking, there is no need to install a lifting foot valve, because the inlet of the general self-priming pump has its own check valve, which is what we often call a one-way valve, so that after the pump is stopped, the liquid in the pump body cannot flow back into the original pool, and it is stored in the pump body, so there is no need to fill the liquid when it is used for the second time. If the foot valve is installed, the effect will be better, because if sometimes the check valve is damaged, there is a foot valve as a guarantee, there will be no idling, and the installation of the foot valve will also effectively ensure the effective suction stroke of the pump. Another special case, but if the suction height difference is too large, or the diameter of the suction tube is too large, and the volume exceeds the liquid storage capacity in the pump chamber of the self-priming pump, it will not work normally. At this time, it is necessary to install a foot valve to ensure that self-priming is safe and fast

Detail / Feature / Application

Detail / Feature / Application

Foot valves are consists of valve body, bonnet, disc , sealing ring and gasket and otherect parts, the disc types are divided in to single disc, double disc and multi-disc.Afterinstalling the foot valves on the pipes,liquid medium flow to the body from bonnet,theliquid pressure act on disc to ma

Wide range of applications

It is used in more than a dozen industries and fields such as oil, natural gas, chemical industry, electric power, metallurgy, shipbuilding, mining, papermaking, medicine, water treatment, industrial systems, etc

Gate valve standard

China National Standard (GB)

China Machinery Standard (JB)

National Standard (ANSI)

US Petroleum Society Standard (API)

American Material Test Association Standard (ASTM)

US Valves and Pipe Factory Standardization Society Standards (MSS)

Japan Industrial Standard (JIS)

German National Standard (DIN)

French national standard (NF)

British National Standard, European Standard (BS, EN)

Other national valve standards (гoct, IEEE, UL)
