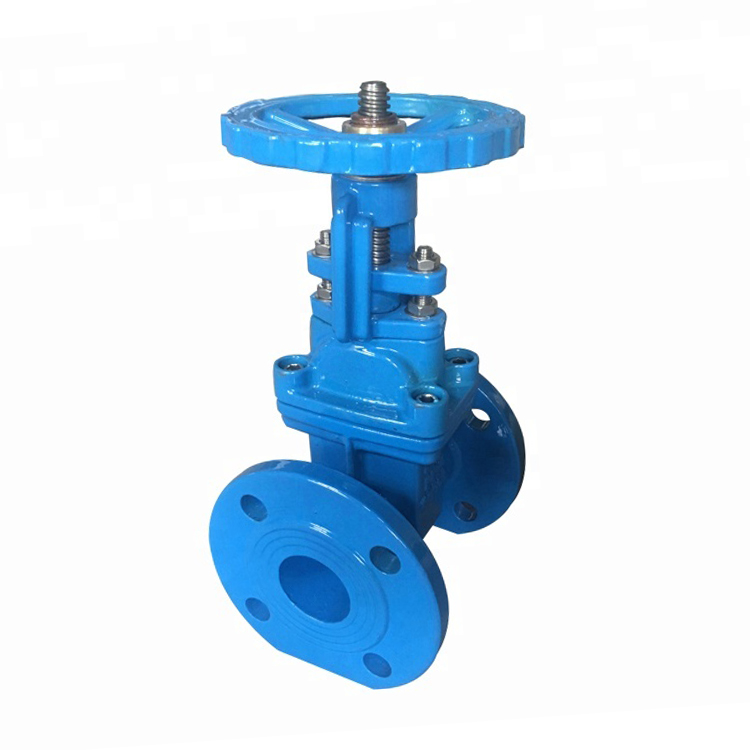

Cast Iron Sluice Valve

Specifications:

  • Size Range(s): 50-600 MM (2’’-24’’)

  • Pressure: PN10/PN16

  • Standard:  EN593, DIN 2501 PN6/10/16, DIN3202 F4

Materials:

  • Body :Cast Iron, Cast Iron Sluice Valve

  • Seal : Ductile Iron+EPDM

  • Stem : Stainless Steel 304

Characteristic:

  • These valves are available in a combination of Materials, Sizes, Pressure Classes, End Connections, etc to suit a wide spectrum of Applications, most demanding Service Conditions & high pressure and high temperature conditions, proven over years of service in conventional thermal and nuclear power plants as well as other steam services around the world.

  • Temperature: -20 to 120℃

Cast Iron Sluice Valve

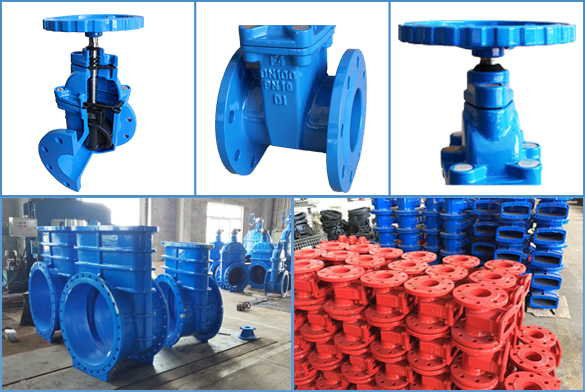

Detail / Feature / Application

Detail / Feature / Application

  • The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.

  • Small torque when it is open and close.

  • Epoxy painted inside is anti-corrosion as well as avoiding the secondday pollution to the fluid.

  • Application: Pipelines to convery oil and storage facilities, Water and wastewater technology, The wellhead device of the oil and gas expoitation, Water engineering.

  • Each product will be carried out appearance, material, air tightness, pressure and shell testing before leaving the factory ;unqualified products are resolutely not allowed to leave the factory.
