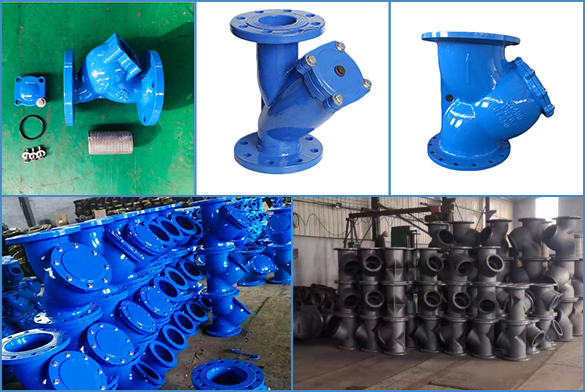

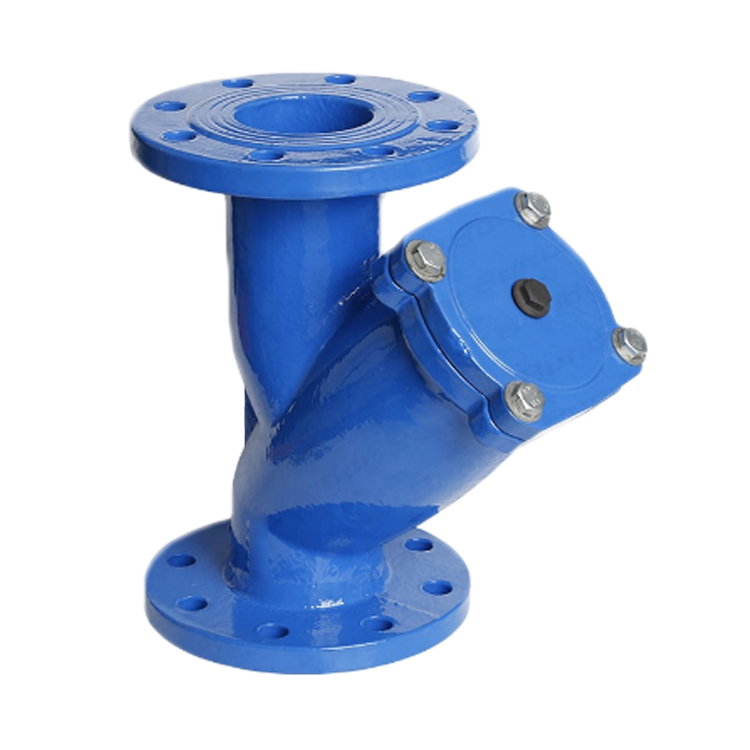

125/150LB Ductile Iron Y-Stainer

Specifications:

  • Size: DN15-DN400 1/2"--18"

  • Pressure: 125LB/150LB

  • Standard:  ASME B16.5 150LB, API609, API598

Materials:

  • Body : Cast Iron,WCB,Stainless Steel 304(CF8)

  • Filter:Cast steel, Stainless Steel 304

Characteristic:

  • Medium: Water, Steam, GasFilter apertureФ0.8-Ф3mm

  • Temperature: 0 to 250℃

Detail / Feature / Application

Detail / Feature / Application

  • Y-type filter is a indispensable device in transmission pipeline system, usually installed inlet in pressure reducing valve, pressure relief valve, water valve and other device, the valve is used to remove impurities in order to protect the valve and equipment in normal use.

  • Strainer body meets applicable DIN standard,large inner space,reduce pressure drop.

  • Ductile iron body material,can't broken by transfer and install.

  • Streamline design for low pressure drop.

  • The drain plug can be changed to ball valve according to customer's request.The ball valve can connect with drain pipe.No need to assemble the bonnet when drain contamination with pressure.
