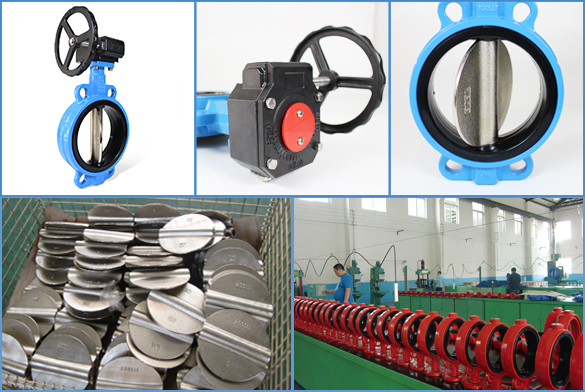

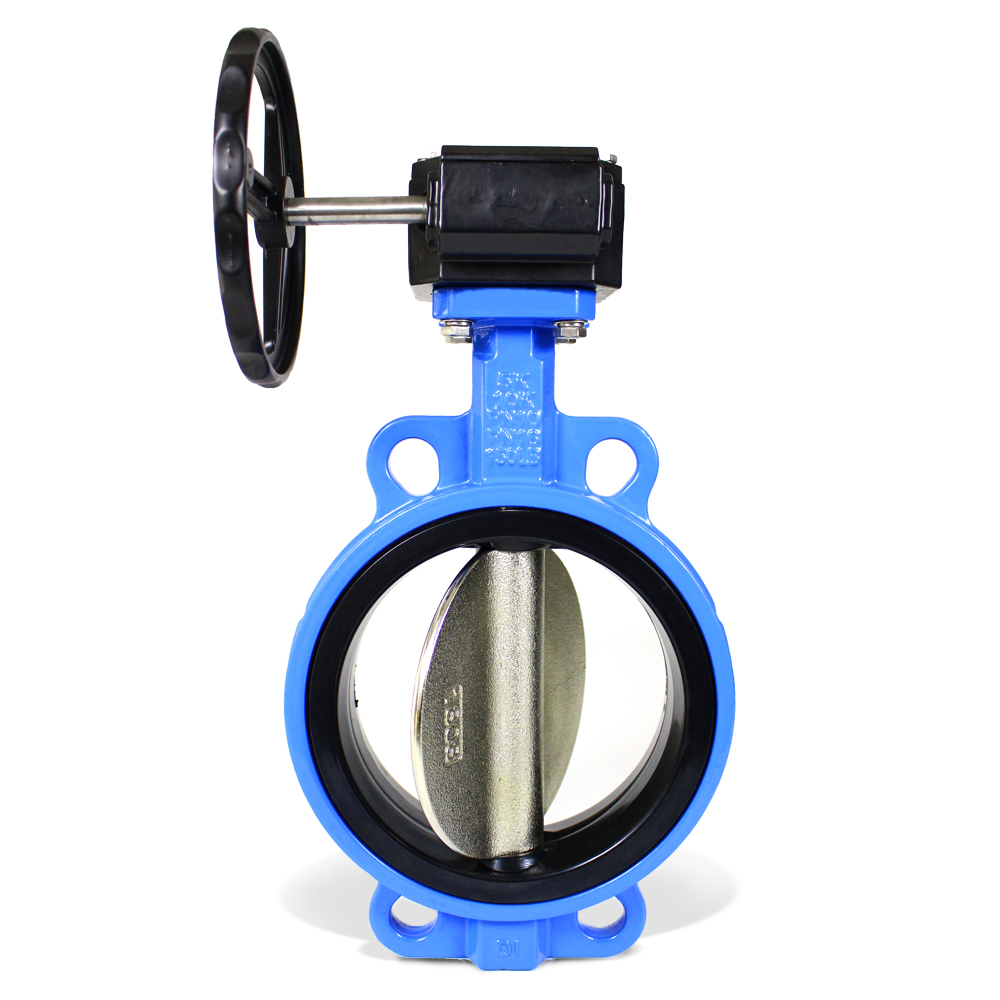

DI Body Wafer type butterfly valve

Specifications:

  • Size: DN40-DN1200/1.5"-48"

  • Pressure: PN10/PN16

  • Standard:  EN593, DIN 2501 PN6/10/16, DIN3202 K1

Materials:

  • Body : Dast Iron

  • Seal : 304+EPDM

  • Stem : Stainless Steel 304

Characteristic:

  • Medium: Water, Oil, Gas

  • Temperature: -20-120℃


Detail / Feature / Application

Detail / Feature / Application

  • Simple and compact construction, quick 90 degrees on-off operation. Minimized operating torque, energy saving.

  • Wide selection of materials, applicable for various medium.

  • The valve body and disc are accurately machined which results in low operating torque and long service life and reliability.

  • Application: Chemical and petrochemical industries, Water and waste water technology, Pneumatic materials handling technology, Shipbuilding, Power generation industry, Food industry.

  • Each product will be carried out appearance, material, air tightness, pressure and shell testingbefore leaving the factory ;unqualified products are resolutely not allowed to leave the factory.
